VisClear II

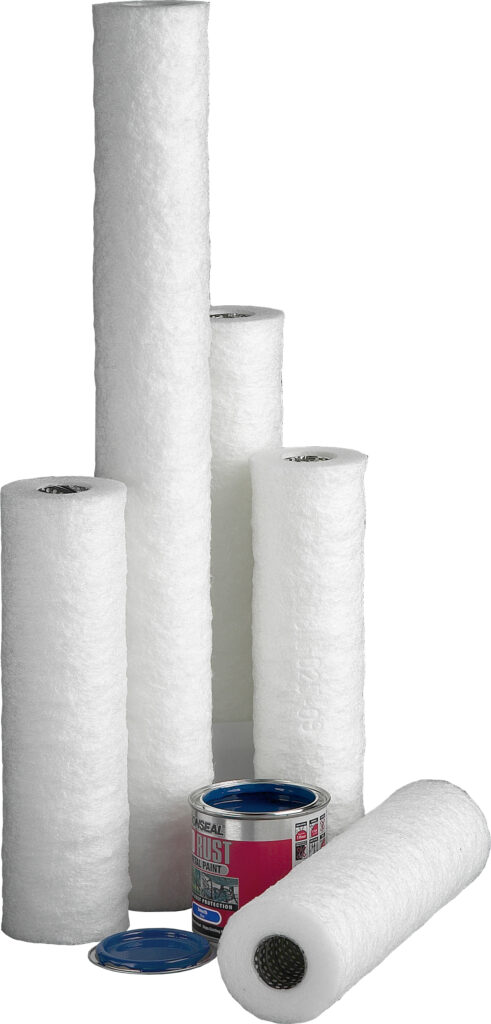

VisClear II meltblown cartridge elements have been specifically designed for the filtration of chemicals and liquid industrial coatings. More specifically, they are optimised for processing high viscosity and temperature solutions.
Continuous development of our meltblowing technology has resulted in the production of an extremely robust filtration media structure. This strength is critical in preventing collapse at the high differential pressures often associated with high viscosity fluids.
The filters are manufactured in a clean environment using state of the art equipment that precisely controls the filtration matrix resulting in repeatable high performance and minimal fibre shedding.
VisClear II cartridges have been developed to directly retrofit into application that have traditionally used Resin Bonded cartridges (RBC).
VisClear II provides the equivalent strength of an RBC with the additional benefits of improved filtrate quality and overall cleanliness.
Technical Specifications
Dimensions
- Outside Diameter: 64mm
- Core Diameter: 27mm
Maximum Operating Conditions
- Temperature 08R: 150ºC 08P : 100ºC 08E : 100ºC
- Recommended change-out differential pressure: 2.5 Bar
Features and Benefits
- Consistent and reliable performance and efficiency
- No resin binders – thermal bonding process minimises media migration and ensures minimal extractables
- High mechanical strength – ideal for high temperature and/or viscous solutions
- Identification embossed on every cartridge
- Graded density structure for maximum dirt holding capacity
- Increased void volume giving high flow rates and low initial pressure losses
- Wide chemical compatibility. Choice of Nylon 6, Polyester and Polypropylene
- Range of nominal ratings from 1 to 350µm
- All individual packing bags are anti static
Product Applications
Fine Chemicals
- Solvent trap filters
Petrochemicals
- Glycol solutions, Hydrocarbon (Kerosene), Wax based materials
Coatings
- Solvent and Aqueous based paints, Lacquers, Emulsions, Waxes, Inks
General Engineering
- Return condensate, High temperature water, Solvent wash systems
